PC30 Technical Specification
| Design Code | ASME,PED |
| Plate Material | SS304,SS316,904L,254SMO,C276 Titanium,Nickel,Incoloy825 |
| Plate Thickness | 0.5mm,0.6mm,0.8mm,1mm |
| Gasket Material | NBR,HNBR,EPDM,HEPDM,FKM(Viton),CR |
| Gasket assembly | Clip on,Lock in,Snap on,Glued |
| Frame material | Carbon steel,Stainless steel Stainless steel coat |
| Nozzle | Flange,Rubber insert,Thread Material insert,Clamp |
| Connection size | DN15-DN500 |
| Connection standard | Customized |
| Color | Customized |
| Application | HVAC,Power,Sugar,Marine,Chemical |
PC30 Gasket Selection
| Gasket Material | Max. Temp | Application |
| NBR Standard | 100℃/212℉ | Remarkable resistance to oils,solvents and grease. |
| NBR-HT | 130℃/266℉ |
| HNBR | 160℃/320℉ |
| EPDM | 150℃/302℉ | Excellent resistance to all kinds of ageing(heat,oxygen,ozone,weathering). Sensitive to ultraviolet radiation and light. Good chemical resistance to ketones,alcohols,and diluted bases together with certain lubricants. Very low resistance to hydrocarbon solvents and oils. |
| EPDM-HT | 160℃/320℉ |
| FPM-A | 180℃/356℉ | Resistance to most fluids for industrial use |
| FPM-G | 220℃/428℉ | High resistance to extreme temperature : -50℃to+220℃. Optimum resistance to chemical product. |
PC30 Gasket Information
Plate heat exchanger gasket is one of the important parts of plate heat exchanger, which can produce plastic deformation and have certain strength.
M&C's gaskets are customized to fit the customer's working conditions and are manufactured by a professional factory in a specified size.
The contact width between the high pressure gasket and the sealing surface is very narrow (line contact).
Sealing principle:

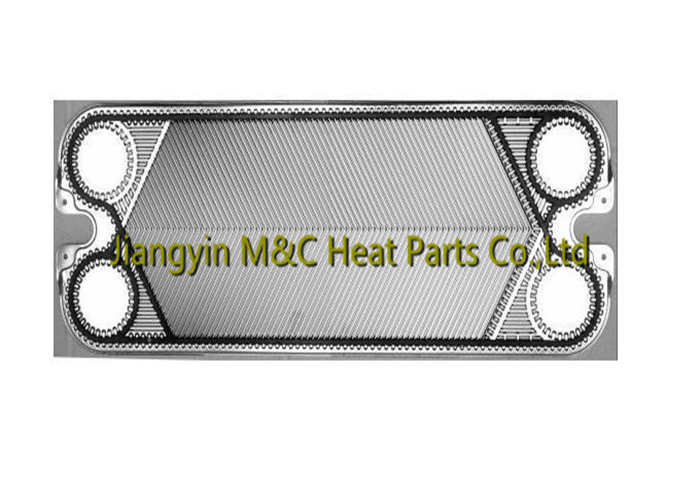

The corrugated plate is pasted with sealing gasket, which is designed to double seal structure and has signal hole.When the medium leaks from the first seal, it can leak out from the signal hole, and the problem can be detected and solved as soon as possible, without causing the mixing of the two media.Sealing gasket according to different media and operating temperature to choose different types of gaskets.
FAQ
Q1: Why should I choose M&C?
A:M&C makes heat exchangers and replacement parts in our own facilities in Jiangsu, giving us complete control of their design, quality, and execution.
Q2: How can I assure the quality of what I want?
A: Samples can be sent for your testing. Also, related certificates can be provided.
Q3: What is the lead time?
A:M&C keeps over 100,000pcs of plates and 300,000pcs of gaskets in stock. If there is no available stock, the EXW lead time of gaskets would be 3~4 days while plates 10~15 days.
Q4: What after-sales services can you provide?
A: If there were any problems with our products, our engineers will serve you 24h in many ways, including telephone instruction or video instruction.
Q5: How can I get quotation of what I want?
A: You can
- choose one product and leave a message to us.
- inform us of brand and type.
- inform us and we can send you a guide for your measurement if you have no ideas of the type.
- send us your technical requirements for us to choose the suitable equipment.
